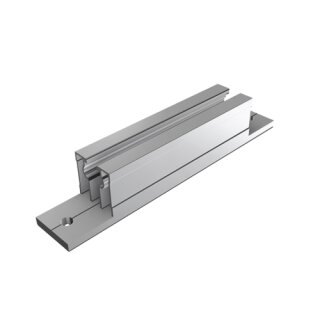

Trapez II 13202-01
Description
- Simplest attachment for a railbased system
- Suitable for almost any trapezoidal roof
- Fits bottom channel of any RAIL
- Insert into the bottom rail channel at a 90° angle, then twist
- Always mount in pairs facing each other
- Pre-assembled EPDM rubber strips (UV-resistant) ensure the necessary tightness for the screw connection
- Suitable drilling screws incl. EPDM sealing washers available separately
- Optional: potential equalization plate
- Material: Stainless steel
With SL Rack and its PV mounting solutions, you have the perfect partner at your side!
With just a few components and movements, almost any photovoltaic system can be installed on any roof. The SL Rack team combines tradition with know-how. Decades of experience, a lot of passion and a finger on the pulse of the industry.
With the free design software "Solar Pro Tool" from SL-Rack, you can easily design the mounting system for your projects yourself and use it to generate a parts list for your order in our store.
Mechanical Data & Design
Length (mm):
90
Width (mm):
10
Height (mm):
42
Weight (kg):
0.2
