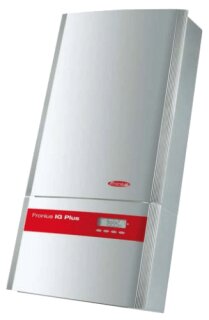

IG Plus 150 V-3

IG Plus 150 V-3

SKU: 2301765
Manufacturer
Fronius
DC Connection
unknown
Display
yes
Grid Feed
3-phase
Original Packaging
no
Interface Standard
unknown
Transformer
yes
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal Output Power AC (W):
12000
Nominal Power DC (W):
PV Voltage to (V):
500
PV Voltage from (V):
230
Euro-Eta Efficiency (%):
95.4
Max. Input Power PV (Wp):
Max. Output Power AC (VA):
12000
Max. DC Voltage (V):
600
Max. Current DC (A):
55
Max. Efficiency (%):
95.9
Mechanical Data & Design
Length (mm):
1263
Width (mm):
434
Height (mm):
250
Weight (kg):
49.2
AC Connection:
unknown
Residual Current Protection:
no
Fan:
yes
Mains Monitoring (MSD):
unknown
Interface Optional:
unknown
EU Protection Class:
IP 54
Surge Protection Device DC:
varistors
