Description

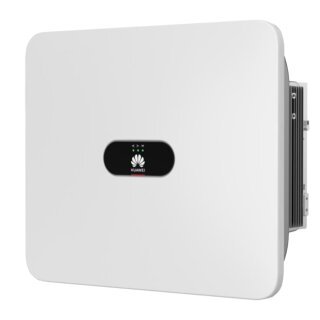

Buy Huawei SUN2000-12K-MB0 Inverter
The Huawei SUN2000-12K-MB0 inverter features two independent MPP trackers with two inputs each. The electronic architecture allows for a maximum input current of 30A per MPPT with a short circuit current of 40A. The three-phase inverter operates with very low operational noise.
The integrated battery functionality offers two battery terminals for connecting a solar storage system. In combination with the LUNA Smart ESS battery, you have access to a central service contact. The inverter is equipped with AI-supported arc detection (AFCI) and features DC individual current measurement as well as an integrated PID recovery function.
Monitoring is done via the free FusionSolar portal, accessible via app or web browser. Communication is supported by Modbus TCP and RTU as well as an RS485 connection for direct 24h energy monitoring. Digital inputs allow for the connection of a ripple control receiver.
Huawei, as a leading technology company in the field of telecommunications and renewable energy, develops inverters for the PV wholesale market. The company continuously invests in the development of its solar technology and offers a 10-year warranty that can be extended to 20 years.
Huawei SUN2000-12K-MB0 Inverter Data Sheet & Information
The inverter achieves an AC rated power of 12,000 watts with a maximum AC apparent power of 13,200 VA. With a Euro efficiency of 97.9% and a maximum efficiency of 98.4%, the inverter demonstrates efficient energy conversion. The DC voltage range extends from 200V to 1000V with a maximum DC voltage of 1100V.
The mechanical properties include dimensions of 546 x 460 x 228 mm with a weight of 21 kg. The IP66 protection rating ensures safe operation outdoors. The integrated surge protection is electronically controlled and is complemented by an all-current residual current circuit breaker.
Communication is standard via RS485 and WLAN, with an optional Ethernet interface available. Certifications include CE, CEI 0-21, IEC 61727, VDE-AR-N 4105:2018-11, and VDE-AR-N 4110:2018-11.
Comparable Inverters in Solar Wholesale
In the solar wholesale of pvXchange, you will find a large selection of inverters from various manufacturers. The range includes products from Fronius, KACO, Kostal, and many other renowned manufacturers. The product search allows for targeted filtering according to technical specifications such as rated power, efficiency, and input voltage.
In addition to buying inverters, you can also purchase solar modules and other solar accessories such as mounting systems, storage solutions, and monitoring components in the pvXchange shop. The extensive product range and detailed filter function support you in selecting the optimal components for your photovoltaic system.
