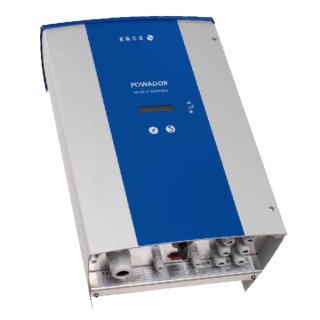

Powador 3502xi

Item number: 2300446


Manufacturer:
KACO
DC connection:
clamp
Number of MPP trackers:
1
Grid feed:
1-phase
Transformer:
yes
Display:
yes
Original packaging:
no
Price/availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data STC
Nominal power AC (W):
3500
PV voltage to (V):
400
PV voltage from (V):
200
Euro-eta efficiency (%):
95
Max. PV power (Wp):
4000
Max. power AC (W):
3500
Max. DC voltage (V):
600
Max. current DC (A):
18.5
Max. efficiency (%):
95.5
Mechanical Data & Design
Length (mm):
600
Width (mm):
340
Height (mm):
200
weight (kg):
23
AC connection:
clamp
Number of inputs DC:
2 (3 x PG screw)
Residual current protection:
no
Fan:
no
Mains monitoring (MSD):
MSD (ENS)
EU protection class:
IP 54
Surge Protection Device DC:
thermic controlled varistors
Warranty / Certificate / Handling
Certificates
DIN VDE 0126
