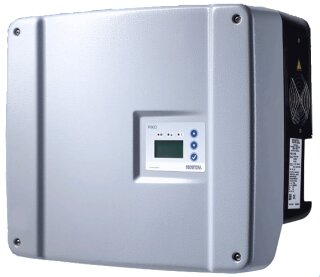

Piko MP Plus 2.0-1

Piko MP Plus 2.0-1

SKU: 996000229
Manufacturer
Kostal
Number of MPP Trackers
1
Grid Feed
1-phase
Transformer
no
Integrated DC Circuit Breaker
electronic DC circuit breaker
DC Connection
MC type 4
Display
yes
Original Packaging
no
Interface Standard
RS 485
  • Stock status:
    Low stock level
    Stock:
    1
  • Delivery time: 3 - 5 Workdays  ((%s - int. shipments may differ))
  • Stock status:
    Low stock level
    Stock:
    1
  • Delivery time: 3 - 5 Workdays  ((%s - int. shipments may differ))
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
pc
Electrical Data
Nominal Power DC (W):
2000
Voltage DC from (V):
75
Voltage DC to (V):
450
Max. Current DC (A):
13
Max. Output Power AC (VA):
3000
Max. Efficiency (%):
97.4
Euro-Eta Efficiency (%):
96.5
Mechanical Data & Design
Length (mm):
420
Width (mm):
320
Height (mm):
210
Item weight (kg):
17
Shipping weight (kg):
17
AC Connection:
5-wire AC plug
DC Inputs (per MPPT):
1
Residual Current Protection:
yes
Fan:
yes
Mains Monitoring (MSD):
MSD (ENS)
Interface Optional:
GSM
EU Protection Class:
IP 55
Surge Protection Device DC:
electronic controlled
Warranty / Certificate / Handling
Certificates
DIN VDE 0126
