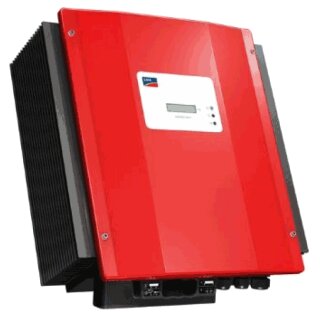

Sunny Boy 4000 US (240V)

Item number: 2300548


Manufacturer
SMA
Number of MPP trackers
1
DC connection
clamp
Display
yes
Grid feed
1-phase
Integrated DC circuit breaker
mechanical DC circuit breaker
Original packaging
no
Interface standard
unknown
Transformer
yes
Price/availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal output power AC (W):
4000
Nominal power DC (W):
4250
PV voltage to (V):
480
PV voltage from (V):
250
Euro-eta efficiency (%):
96
Max. input power PV (Wp):
5000
Max. output power AC (VA):
4000
Max. DC voltage (V):
600
Max. current DC (A):
18
Max. efficiency (%):
97
Mechanical Data & Design
Length (mm):
450
Width (mm):
352
Height (mm):
236
weight (kg):
40
AC connection:
clamp
Number of inputs DC:
2
Residual current protection:
no
Fan:
yes
Mains monitoring (MSD):
none
Interface optional:
RS 485
EU protection class:
unknown
Surge Protection Device DC:
thermic controlled varistors
