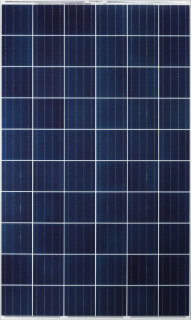

BYD 270P6C-30

BYD 270P6C-30

SKU: 2105957-1
Manufacturer
BYD Company Ltd.
Number of Cells
60
Cell Type
polycrystalline
Frame Color
silver
Foil Color
white
Busbars
4
Cell Dimension (mm/inches)
156 x 156 (6+)
WEEE Reg. Number
DE47999256
  • Packing Unit:
    30 modules/pallet, 840 modules/container
  • Packing Unit:
    30 modules/pallet, 840 modules/container
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal Power (Wp):
270
Voltage at MPP (V):
31.18
Current at MPP (A):
8.66
Open Circuit Voltage (V):
39
Short Circuit Current (A):
9.13
Max. System Voltage IEC (V):
1000
Max. Reverse Current (A):
Max. System Voltage UL (V):
Temp. Coefficient Pmax (%/K):
-0.47
Mechanical Data & Design
Length (mm):
1645
Width (mm):
992
Height (mm):
35
Item weight (kg):
18
Shipping weight (kg):
18
Cable Length + (mm):
1000
Cable Length - (mm):
1000
Cable Cross Section (mm²):
4
Modular Construction:
glass-foil
Warranty / Certificate / Handling
Warranty Linear
yes
Performance Warranty Manufacturer (years)
25
Product Warranty Manufacturer (years)
10
Certificates
CE, IEC 61730, UL 1703
