CS6PH-255P (CS6P replacement)

CS6PH-255P (CS6P replacement)

SKU: 996000402
Product Condition
A - New product, in original packaging
Manufacturer
Canadian Solar Inc. (CSI)
Number of Cells
108
Cell Type
polycrystalline
Cell Dimension (mm/inches)
156 x 78
Busbars
5
Connection Type
MC type 4 connectable
Foil Color
white
Frame Color
silver
WEEE Reg. Number
DE37495048
  • Stock status:
    Available immediately
    Stock:
    35
    Packing Unit:
    27 pieces per pallet, 756 pieces per container
  • Delivery time: 3 - 5 Workdays  ((%s - int. shipments may differ))
  • Stock status:
    Available immediately
    Stock:
    35
    Packing Unit:
    27 pieces per pallet, 756 pieces per container
  • Delivery time: 3 - 5 Workdays  ((%s - int. shipments may differ))
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
pc

Description

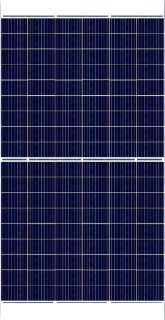

The product was manufactured with 108 polycrystalline half-cut cells in the frame dimensions of the widely used CS6P type and is well suited as a replacement for defective original modules in existing PV systems.

Electrical Data
Nominal Power (Wp):
255
Upper Power Tolerance (W):
10
Lower Power Tolerance (W):
Current at MPP (A):
8.86
Short Circuit Current (A):
9.64
Voltage at MPP (V):
28.8
Open Circuit Voltage (V):
34.4
Max. System Voltage IEC (V):
1000
Max. System Current (A):
20
Temp. Coefficient Pmax (%/K):
-0.38
Mechanical Data & Design
Length (mm):
1638
Width (mm):
982
Height (mm):
40
Item weight (kg):
18.5
Shipping weight (kg):
18.5
Bypass Diodes:
yes
Cable Cross Section (mm²):
4
Modular Construction:
glass-foil
Warranty / Certificate / Handling
PID Free
unknown
Certificates
CE, IEC 61215, IEC 61730, UL 1703
