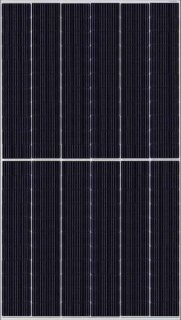

DHN-66Z16/DG-620W

DHN-66Z16/DG-620W

SKU: 996002151
Product Condition
A - New product, in original packaging
Number of Cells
132
Cell Type
N-Type, monocrystalline
Frame Color
silver
Foil Color
white
Connection Type
MC4-EVO 2 connectable
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal Power (Wp):
620
Voltage at MPP (V):
41.3
Short Circuit Current (A):
15.0
Current at MPP (A):
15.01
Open Circuit Voltage (V):
48.6
Max. System Voltage IEC (V):
1500
Max. System Current (A):
30
Temp. Coefficient Pmax (%/K):
-0.3
Lower Power Tolerance (W):
Mechanical Data & Design
Length (mm):
2382
Width (mm):
1134
Height (mm):
30
Item weight (kg):
32.5
Shipping weight (kg):
35
Bypass Diodes:
yes
Cable Cross Section (mm²):
4
Max. Pressure Load (N/m²):
5400
Max. Pull-Off Load (N/m²):
2400
Modular Construction:
glass-glass bifacial
Warranty / Certificate / Handling
Warranty Linear
yes
Performance Warranty Manufacturer (years)
30
PID Free
yes
Certificates
CE, IEC 61215, IEC 61730, safety class II, UL 1703
