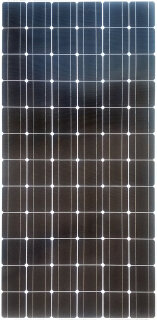

HEM 180

Item number: 2101971


Manufacturer
HEM PV
Number of cells
72
Cell type
monocrystalline
Cell dimension (mm/inches)
125 x 125 (5")
Connection type
MC type 4
Foil color
white
Frame color
silver
Price/availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal power (Wp):
180
Current at MPP (A):
5.01
Short circuit current (A):
5.4
Voltage at MPP (V):
36
Open circuit voltage (V):
44.6
Max. reverse current (A):
0
Max. system voltage IEC (V):
1000
Max. system voltage UL (V):
0
Temp. coefficient nominal power (%/K):
-0.29
Mechanical Data & Design
Length (mm):
1610
Width (mm):
810
Height (mm):
34
Weight (kg):
15
Bypass diodes:
yes
Max. pressure load (kN/m²):
0
Max. pull-off load (kN/m²):
0
Modular construction:
glass-foil
Warranty / Certificate / Handling
PID free
unknown
Product warranty manufacturer (years)
2
Certificates
IEC 61215
