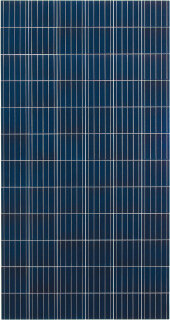

JKM335PP-72 (Eagle Plus)

JKM335PP-72 (Eagle Plus)

SKU: 996000371
Manufacturer
Jinko Solar
Number of Cells
72
Cell Type
polycrystalline
Cell Dimension (mm/inches)
156 x 156 (6+)
Busbars
4
Connection Type
MC type 4 connectable
Foil Color
white
Frame Color
silver
WEEE Reg. Number
DE47999256
  • Packing Unit:
    624 / 26
  • Packing Unit:
    624 / 26
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal Power (Wp):
335
Upper Power Tolerance (%):
3
Lower Power Tolerance (%):
Current at MPP (A):
8.82
Short Circuit Current (A):
9.18
Voltage at MPP (V):
38
Open Circuit Voltage (V):
47.2
Max. System Voltage IEC (V):
1000
Max. System Current (A):
15
Temp. Coefficient Pmax (%/K):
-0.4
Mechanical Data & Design
Length (mm):
1956
Width (mm):
992
Height (mm):
40
Weight (kg):
26.5
Cable Length + (mm):
900
Cable Length - (mm):
900
Cable Cross Section (mm²):
4
Modular Construction:
glass-foil
Warranty / Certificate / Handling
Warranty Linear
yes
PID Free
yes
Certificates
CE, IEC 61215, IEC 61730, safety class II
