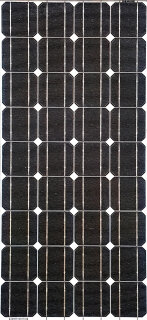

TDB 103x103-36-P (50Wp)
Electrical Data
Nominal Power (Wp):
50
Current at MPP (A):
2.92
Short Circuit Current (A):
3.26
Voltage at MPP (V):
17.1
Open Circuit Voltage (V):
21.6
Max. Reverse Current (A):
0
Max. System Voltage IEC (V):
600
Max. System Voltage UL (V):
0
Temp. Coefficient Nominal Power (%/K):
-0.5
Mechanical Data & Design
Length (mm):
1309
Width (mm):
339
Height (mm):
32
Weight (kg):
6
Bypass Diodes:
yes
Max. Pressure Load (kN/m²):
0
Max. Pull-Off Load (kN/m²):
0
Modular Construction:
glass-foil
Warranty / Certificate / Handling
Performance Warranty Manufacturer (years)
2
PID Free
unknown
Product Warranty Manufacturer (years)
2
