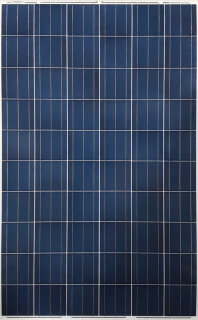

Q.PRO 215

Q.PRO 215

SKU: 2105081
Manufacturer
Hanwha Q.CELLS
Number of Cells
60
Cell Type
polycrystalline
Cell Dimension (mm/inches)
156 x 156 (6+)
Connection Type
MC type 4 connectable
Foil Color
white
Frame Color
silver
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal Power (Wp):
215
Current at MPP (A):
7.6
Short Circuit Current (A):
8.12
Voltage at MPP (V):
28.82
Open Circuit Voltage (V):
36
Max. Reverse Current (A):
25
Max. System Voltage IEC (V):
1000
Max. System Voltage UL (V):
Temp. Coefficient Pmax (%/K):
-0.41
Mechanical Data & Design
Length (mm):
1670
Width (mm):
1000
Height (mm):
50
Weight (kg):
20
Bypass Diodes:
yes
Cable Length + (mm):
1100
Cable Length - (mm):
1100
Cable Cross Section (mm²):
4
Max. Pressure Load (kN/m²):
5400
Max. Pull-Off Load (kN/m²):
Modular Construction:
glass-foil
Warranty / Certificate / Handling
Performance Warranty Manufacturer (years)
10
PID Free
unknown
Product Warranty Manufacturer (years)
3
Certificates
CE, IEC 61730
