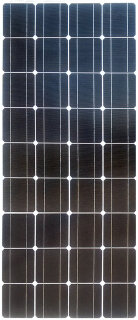

SPS-80 M

SPS-80 M

SKU: 2101867
Manufacturer
SPS istem
Number of Cells
36
Cell Type
monocrystalline
Cell Dimension (mm/inches)
156 x 156 (6+)
Connection Type
unknown
Foil Color
white
Frame Color
silver
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal Power (Wp):
80
Current at MPP (A):
4.7
Short Circuit Current (A):
5.11
Voltage at MPP (V):
17.75
Open Circuit Voltage (V):
21.85
Max. Reverse Current (A):
Max. System Voltage IEC (V):
1000
Max. System Voltage UL (V):
Temp. Coefficient Pmax (%/K):
-0.44
Mechanical Data & Design
Length (mm):
1203
Width (mm):
548
Height (mm):
35
Item weight (kg):
12
Shipping weight (kg):
12
Bypass Diodes:
yes
Max. Pressure Load (kN/m²):
Max. Pull-Off Load (kN/m²):
Modular Construction:
glass-foil
Warranty / Certificate / Handling
Performance Warranty Manufacturer (years)
5
PID Free
unknown
Product Warranty Manufacturer (years)
5
