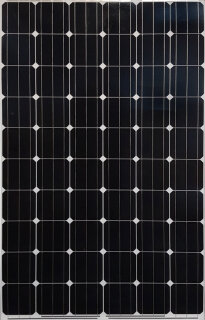

HIT-H250E01

HIT-H250E01

SKU: 2107695
Manufacturer
Sanyo
Number of Cells
60, 240
Cell Type
HIT, monocrystalline/amorphous
Cell Dimension (mm/inches)
125 x 125 (5")
Connection Type
MC type 3
Foil Color
white
Frame Color
black
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal Power (Wp):
250
Current at MPP (A):
7.18
Short Circuit Current (A):
7.74
Voltage at MPP (V):
34.9
Open Circuit Voltage (V):
43.1
Max. Reverse Current (A):
Max. System Voltage IEC (V):
1000
Max. System Voltage UL (V):
Max. System Current (A):
15
Temp. Coefficient Pmax (%/K):
-0.3
Mechanical Data & Design
Length (mm):
1610
Width (mm):
861
Height (mm):
35
Item weight (kg):
16.5
Shipping weight (kg):
16.5
Bypass Diodes:
yes
Max. Pressure Load (kN/m²):
Max. Pull-Off Load (kN/m²):
Modular Construction:
glass-foil
Warranty / Certificate / Handling
Performance Warranty Manufacturer (years)
5
PID Free
unknown
Product Warranty Manufacturer (years)
2
Certificates
IEC 61215, IEC 61730
