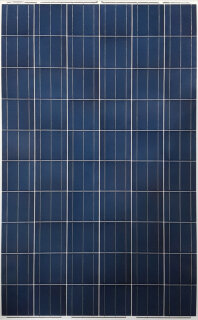

SM210U, 230Wp

SM210U, 230Wp

SKU: 2104697
Manufacturer
Sunways
Number of Cells
60
Cell Type
polycrystalline
Cell Dimension (mm/inches)
156 x 156 (6+)
Connection Type
Tyco
Foil Color
white
Frame Color
silver
Price/Availability visible after login
We accept inquiries from commercial customers only, please login or register new with us.
Electrical Data
Nominal Power (Wp):
230
Current at MPP (A):
7.86
Short Circuit Current (A):
8.38
Voltage at MPP (V):
29.3
Open Circuit Voltage (V):
36.8
Max. Reverse Current (A):
16.8
Max. System Voltage IEC (V):
1000
Max. System Voltage UL (V):
Temp. Coefficient Pmax (%/K):
-0.43
Mechanical Data & Design
Length (mm):
1680
Width (mm):
990
Height (mm):
50
Item weight (kg):
24
Shipping weight (kg):
24
Bypass Diodes:
yes
Max. Pressure Load (kN/m²):
Max. Pull-Off Load (kN/m²):
Modular Construction:
glass-foil
Warranty / Certificate / Handling
Performance Warranty Manufacturer (years)
5
PID Free
unknown
Product Warranty Manufacturer (years)
2
Certificates
CE, IEC 61215, IEC 61730
